Franklin Electric E-tech EDV Series Single Phase Stainless steel Drainage submersible pumps for dirty water.
Construction
- Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port
- ED: with two-passage impeller
- EDV: with free-flow (vortex) impeller
- Double shaft seal with interposed oil chamber
Applications
- For clean and dirty water, also containing solids up to 35 mm grain size
- The EDV free-flow impeller construction is particularly suitable for liquids with a high solid content or with filamentous particles
- This construction (with smooth surfaces in rolled-stainless steel and easy access for cleaning) is also suitable for certain uses in the food industry
Operating conditions
- Liquid temperature up to 35 °C
- Maximum immersion depth: 5 m
- Minimum immersion depth: 248 mm
- Continuous duty (with submerged motor)

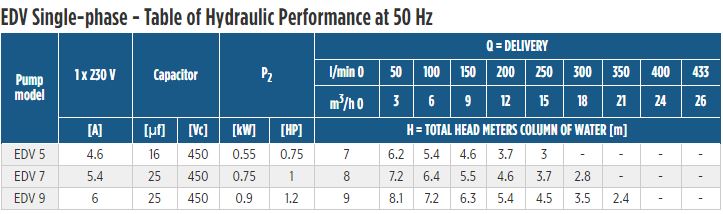

Motor Specifications (ED and EDV Series Range)
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
- ED, EDV:
- Single-phase 230 V ± 10 %, with level switch and thermal protector
- Incorporated capacitor
- Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166; 5 m for ED5/EDV5
- EDT, EDVT:
- Three-phase 230 V ± 10 %; 3-phase 400 V ± 10 %
- Cable: H07Rn-F, 4G1 mm2, length 10 m, without plug; 5 m for ED5T/EDV5T
- Insulation class F
- Protection IpX8 (for continuous immersion)
- Triple impregnation humidity-proof dry winding
- Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41
Available on request
-
- Other voltages
- Frequency 60 Hz
- Other mechanical seal
- Cable length 20 m
- Motor suitable for operation with frequency converter
- Three-phase pumps with incorporated float switch
