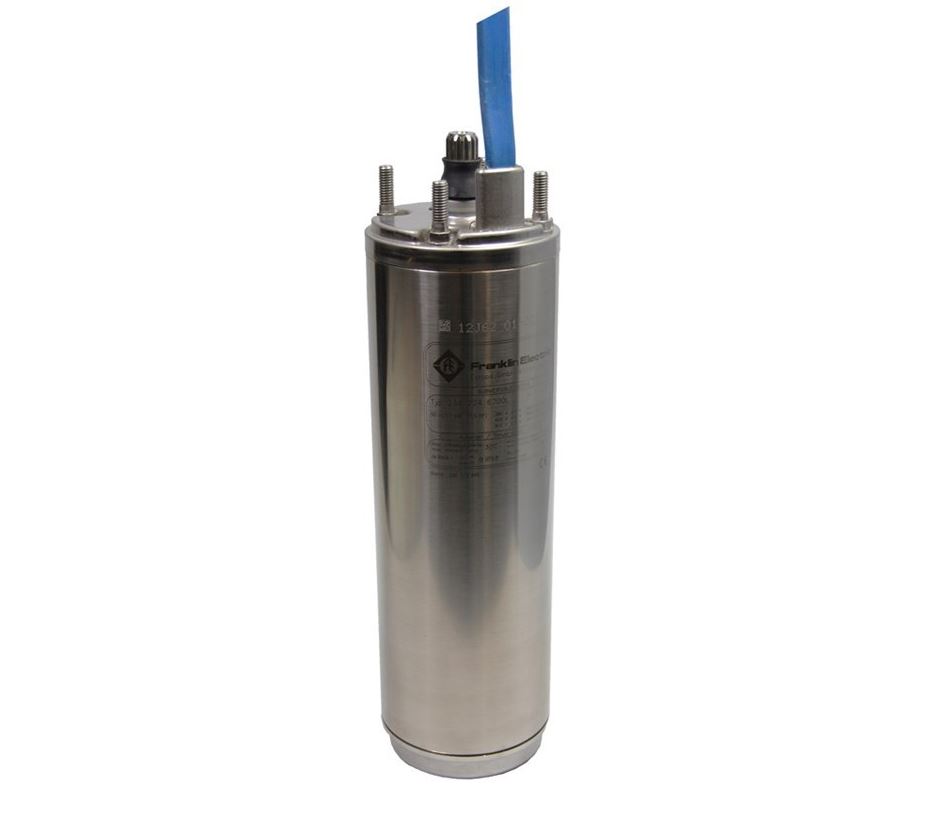

Franklin Electric 4″ encapsulated submersible motors, built in ISO 9001 certified facilities for outstanding performance in 4″ or larger water wells. The 3-phase motor offers maximum life and highest efficiency under various load conditions. It should ideally be combined to the Franklin Electric SubStart/SubTronic3P control boxes for maximum system performance, protection and warranty.#
Standard Motor Design Specifications:
- Hermetically sealed stator with 316SS shell. Anti track, self healing stator resin prevents motor burn out, mechanically supports the winding and provides fast heat dissipation.
- High efficiency electrical design (low operation cost, cool running winding)
- Removable water bloc lead connector
- No-wear, water lubricated radial and thrust bearings for 100 % maintenance free operation
- Non-contaminating FES 93 filling liquid
- Various agency approvals for use in drinking water
Brackish Water Version Specifications:
- For use in water that has more salinity than fresh water, but not as much as seawater.
- The novel Franklin Electric Brackish Water Motor proposes a cost-effective solution wherever standard 4″ motors are not giving sufficient service life.
Pollution Recovery Motor Version Specifications:
- Fluorelastomere (Viton®) rubber parts
- Special Polyuretane (PUR) lead assemblies
- 304 graded stainless steel as standard, 316SS as an option
Technical specification:
- 3-phase motor range: 0.37 – 3.0 kW
- 4″ NEMA flange
- Rotation: reversible
- Degree of protection: IP68
- Insulation: Cl.B
- Rated ambient temperature: 30 °C
- Required cooling flow: min. 0.08 m/s
- Max. starts/hr.: 20, equally distributed
- Mounting: vertical to horizontal, shaft upwards
- Voltage tolerance 50 Hz from nominal: -10 % / +6 %
- Voltage tolerance 60 Hz from nominal: ±10 %
- Protection requirements: EN 60947-4-1
Options:
- Motors in full 316SS
- Motors with factory-installed lead in single packing
- Built-in lightning arrestor
- Various cable lengths
- Special voltages on request
- Alternative material executions
