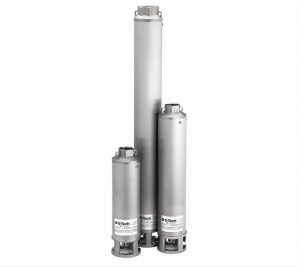

VS 4 Series 4″ Submersible Pump E-Tech Franklin Electric

Submersible Pumps for 4″ deep wells or larger

  • Size: 4″
  • Compact, reliable and suited to operate in horizontal position
  • Built-in check valve to protect the pump against water hammer risk
  • Floating impellers to grant a better performance and longer life for the pump against abrasion
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective
  • Flow: up to 6.0 m³/h at 50 Hz
  • Head: up to 278 m at 50 Hz





Submersible Pumps for 4″ deep wells or larger

VS Series 4″ Submersible borehole pumps Outer Case: Stainless Steel, Diffusers: Techolopolymer, Impeller: Polycarbonate Max Flow 6.0m3/hr   Max Head 278m

Applications

  • Municipal water works, fountains and waste water
  • Water distribution and pressure boosting
  • Irrigation and Sprinkler systems, water treatment plants, filtration and reverse osmosis
  • Industrial cooling and processing
  • Water supply to and from tanks, reservoir and wells
  • Turf and landscapes
  • Residential and farm wells and drainage

Features

  • Compact, reliable and suited to operate in horizontal position
  • Built-in check valve to protect the pump against water hammer risk
  • Floating impellers to grant a better performance and longer life for the pump against abrasion
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective

Specifications

  • Flow: up to 6.0 m³/h at 50 Hz
  • Head: up to 278 m at 50 Hz
  • Pumped liquid: chemically and mechanically non-aggressive
  • Water temperature range: from 0 °C to 40 °C
  • Maximum allowable amount of sand 100 gr/m³, solid dimension max. 2 mm
  • Maximum pump diameter (including cable guard): 95 mm
  • Outlet diameter: 1 ¼” VS 1-2-3-4, 2″ VS 6-7-8-10-15
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA standard

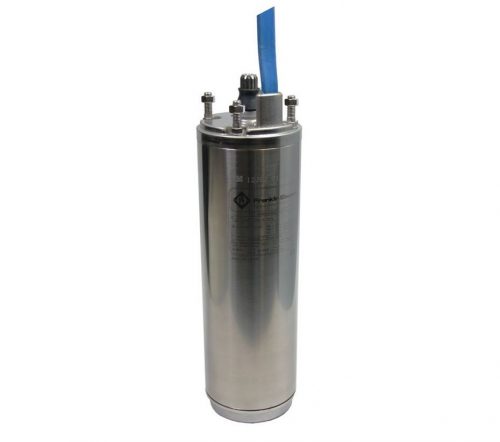

  • Motors: see section Submersible Motors
Part Numbers VS 4/10, VS 4/14, VS 4/18, VS 4/27, VS 4/32, VS 4/4, VS 4/40, VS 4/44, VS 4/7

Additional information

Pump Size

Series Max Flow

6.0m3/h

Series Max Head

Up to 278m at 50Hz

Part Numbers

VS 4/10, VS 4/14, VS 4/18, VS 4/27, VS 4/32, VS 4/4, VS 4/40, VS 4/44, VS 4/7

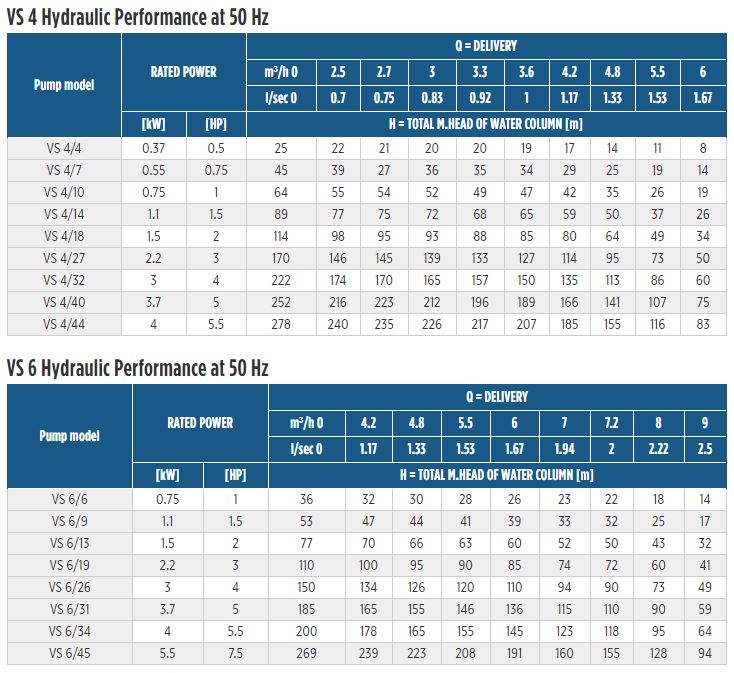

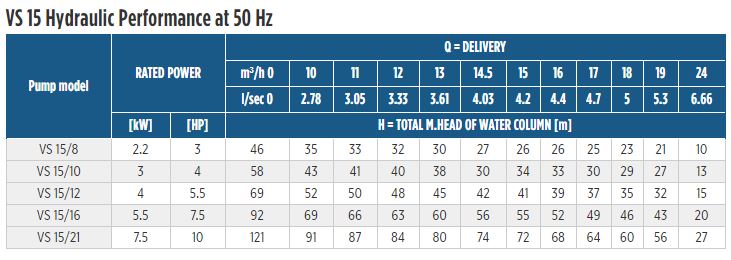

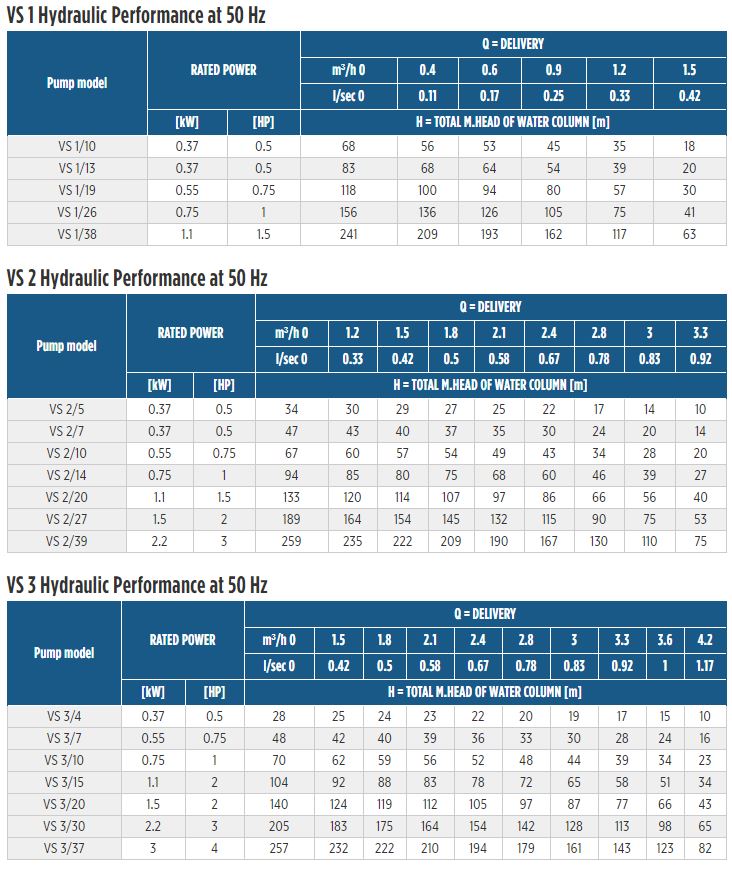

50Hz Performance

Downloads


Click here to download catalogue page






Enquire for more information
