EGN Three phase Drainage Pump for Clean Water

Submersible Drainage Pumps for Clean Water
  • Max Flow:  500 m3/h
  • Max Head:  20 m
  • Series:  EGN Series
  • Phase:  Three Phase
  • Triple impregnation humidity-proof dry winding
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Franklin Electric E-tech EGN Series Three Phase Stainless steel Drainage submersible pumps for dirty water.

Contact us for more info

Franklin Electric E-tech EGN Series Three Phase Stainless steel Drainage submersible pumps for clean water.

Construction

  • Single-impeller submersible drainage pump, with open impeller with vertical threaded delivery port (G 1 1/2)
  • Double mechanical shaft seal with interposed oil chamber, to protect against dry-running

Applications

  • For clean containing solids up to 10 mm grain size
  • For draining rooms or or emptying tanks
  • Extraction of water from ponds, streams or pits and for rainwater collection

Operating Conditions

  • Liquid temperature: up to 35 °C
  • Maximum immersion depth: 5 m
  • Minimum immersion depth: 205 mm
  • Continuous duty (with submerged motor)

Motor Specification (EGN Single and Three Phase)

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
  • EGNT:
  • Three-phase 230 V ± 10 %; Three-phase 400 V ± 10 %
  • Cable: H07Rn-F, 4G1 mm², length 10 m, without plug
  • EGN:
  • Single-phase 230 V ± 10 %, with float switch and thermal protector
  • Incorporated capacitor
  • Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166
  • Insulation class F
  • Protection Ip X8 (for continuous immersion)
  • Triple impregnation humidity-proof dry winding
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Available on Request

  • Other voltages
  • Frequency 60 Hz
  • Other mechanical seal
  • Cable length 20 m
  • Vertical magnetic float switch
  • Motor suitable for operation with frequency converter
  • Three-phase pumps with incorporated float switch

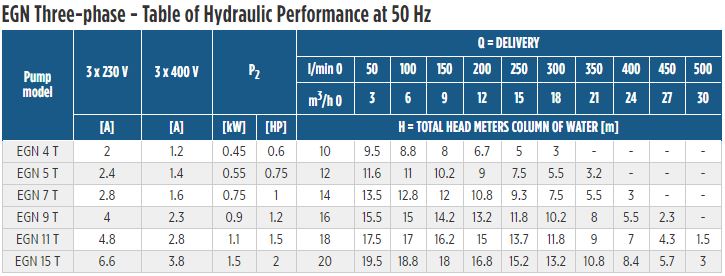

50Hz Performance

Downloads


Click here to download catalogue page
