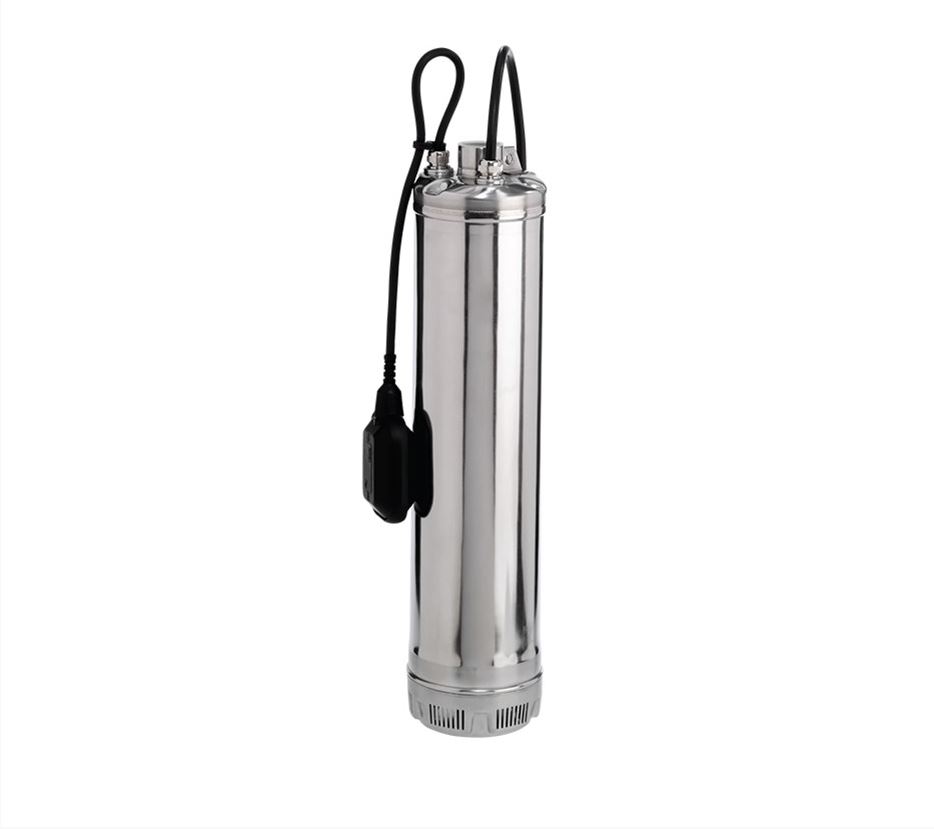

ES 5 – 5″ Submersible Pump E-tech Franklin Electric

5″ Stainless steel close-coupled submersible multistage pumps
  • Size: 5″
  • Flow: 7.5 m³/h at 50 Hz
  • Head: 68m at 50 Hz





5″ Stainless steel close-coupled submersible multistage pumps

Features

  • Easy installation: the single-phase version have internal capacitor and thermic motor-protection thus is not necessary to connect the pump to a control panel
  • Compact close-coupled design, robust and corrosion resistant
  • Double mechanical seal separated by an oil* chamber for maximum motor protection. *In compliance with FDA – Food, Drug Administration – and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffs
  • Plug-in type power cable and level control (floater) for easy replacement
  • Heavy duty over size motor shaft
  • Stainless steel water proof capsule to protect the motor
  • Motor cooling is guaranteed by the pumped liquid

Specifications

  • Flow:
  • up to 7.5 m³/h at 50 Hz
  • up to 9 m³/h at 60 Hz
  • Head:
  • up to 88 m at 50 Hz
  • up to 80.5 m at 60 Hz
  • Discharge outlet: 1¼” Rp or NPT
  • Maximum immersion depth: 20 m
  • Maximum allowable amount of sand: 50 gr/m³
  • Maximum solids size: up to 2 mm
  • Liquid temperature range -5 °C to 40 °C
  • Continuous operation either in vertical or horizontal position
  • 20 m of power cable type H07RN F is supplied with the standard version
Part Numbers ES 5/3, ES 5/4, ES 5/5, ES 5/6

Additional information

Pump Size

Series Max Flow

7.5m3/h

Series Max Head

68m

Part Numbers

ES 5/3, ES 5/4, ES 5/5, ES 5/6

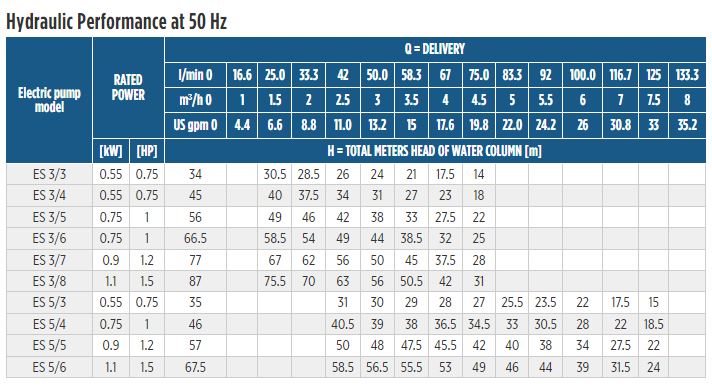

50Hz Performance

Downloads


Click here to download catalogue page
