6″ Encapsulated 3 Phase HiTemp 90°C Motors – Franklin Electric

Franklin Electric 6″ encapsulated motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 6″ diameter or larger water wells with ambient temperature up to 90 °C.

Water lubricated thrust and radial bearings enable a maintenance free operation. A special diaphragm ensures pressure compensation inside the motor. The motor is filled with a special FES92 fluid, providing frost protection down to -15 °C storage temperature.

The Sandfighter® SiC seal system is standard.

Specifications

  • Up to max. 90 °C ambient temperature
  • 45 kN thrust bearing capacitiy is standard
  • Increased thrust capacity up to 30 °C
  • No cooling flow in larger wells (12″ / open reservoirs) up to 30 °C ambient
  • Hermetically sealed encapsulated stator, anti track, self healing stator resin
  • Removable “Water Bloc” lead connector
  • Sandfighter® motor with SiC-mechanical seal
  • High efficiency electrical design for low operation cost
  • All motors prefilled and 100 % tested. Max. storage temperature -15 °C – + 60 °C
  • High temperature leads
  • Non contaminating FES92 -filled design

Franklin Electric 6″ encapsulated motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 6″ diameter or larger water wells with ambient temperature up to 90 °C.

Water lubricated thrust and radial bearings enable a maintenance free operation. A special diaphragm ensures pressure compensation inside the motor. The motor is filled with a special FES92 fluid, providing frost protection down to -15 °C storage temperature.

The Sandfighter® SiC seal system is standard.

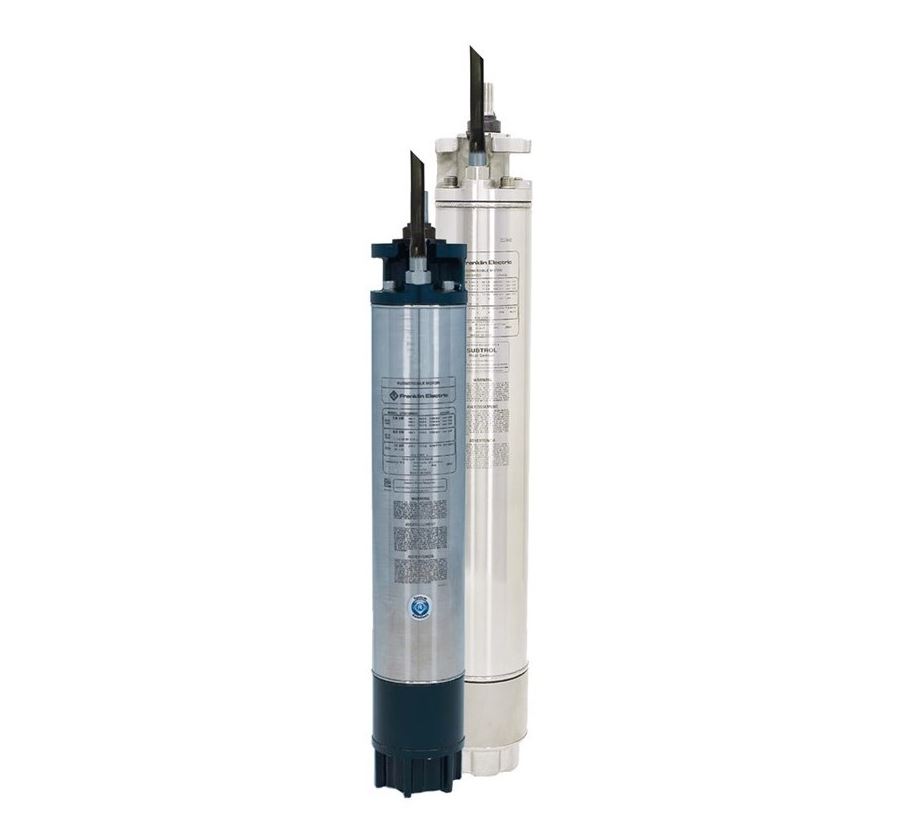

6″ 3p Encapsulated High Temp 90dc Franklin Motor

Specifications

  • Up to max. 90 °C ambient temperature
  • 45 kN thrust bearing capacitiy is standard
  • Increased thrust capacity up to 30 °C
  • No cooling flow in larger wells (12″ / open reservoirs) up to 30 °C ambient
  • Hermetically sealed encapsulated stator, anti track, self healing stator resin
  • Removable “Water Bloc” lead connector
  • Sandfighter® motor with SiC-mechanical seal
  • High efficiency electrical design for low operation cost
  • All motors prefilled and 100 % tested. Max. storage temperature -15 °C – + 60 °C
  • High temperature leads
  • Non contaminating FES92 -filled design

Technical Specification

  • 3.7 – 30 kW
  • 6″ NEMA double flange
  • Protection: IP 68
  • Starts per hour: max. 20
  • Installation: vertical/horizontal
  • Standard Voltage: 380-415 V/50 Hz, 460 V/60 Hz
  • Voltage tolerance 50 Hz: -10 % / +6 % UN [380-415 V = (380-10 %) – (415+6 %)]
  • Voltage tolerance 60 Hz: ±10 % UN
  • Motor protection: Select thermal overloads according to DIN 60947-4-1, trip class 10 or 10 A, trip time < 10 s at 5 x IN
  • Insulation: Class F
  • Rated ambient temperature: max. 90 °C
  • Cooling flow: min. 0.16 m/s
  • DOL / YΔ – start (pos. of cables 90°)
  • Motor cable in standard with 5m length 3X8,4mm², and 5m single wire round – ground lead mounted on the motor

Options

  • Other voltages
  • Motors complete in 316 SS
  • Motor lead in 5 m or 8 m length

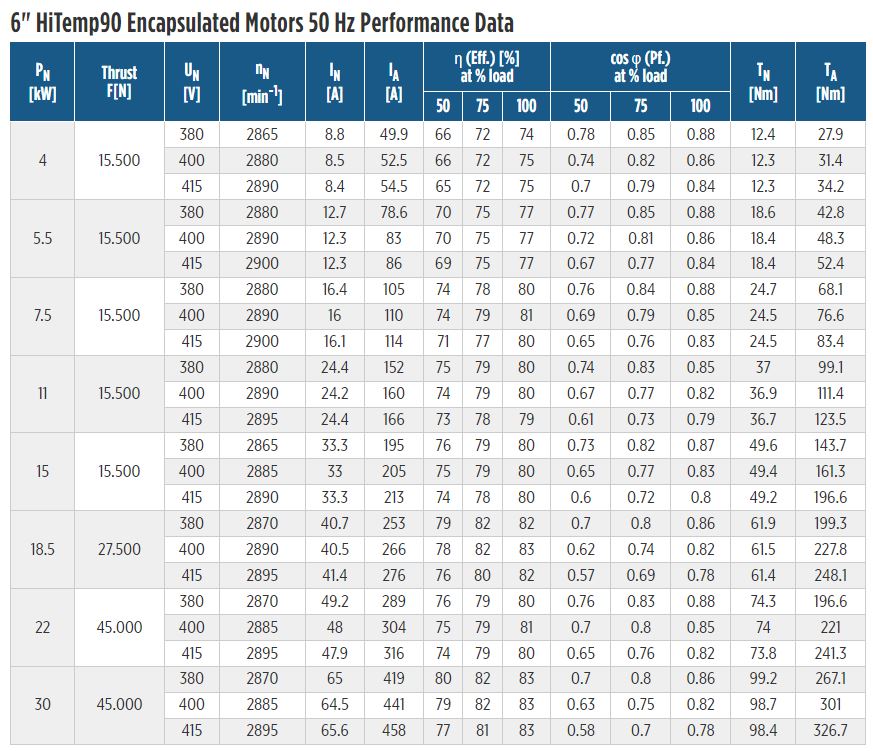

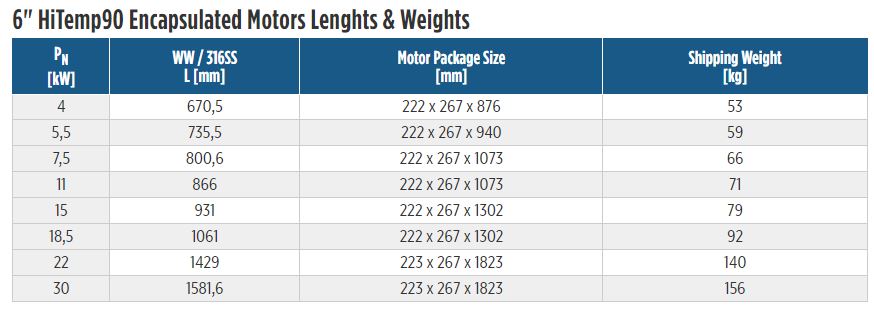

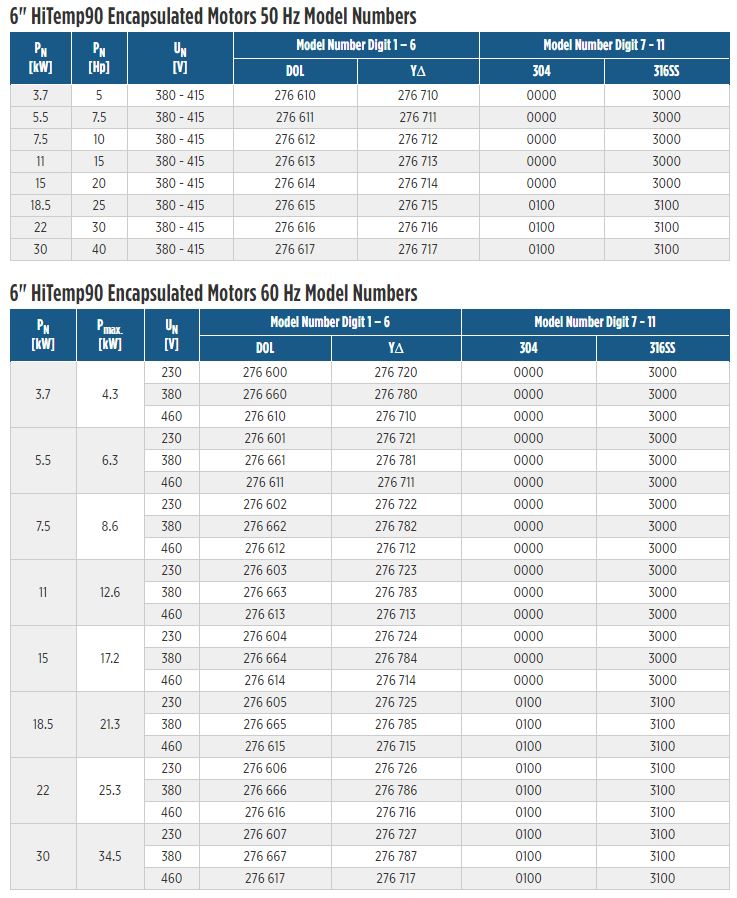

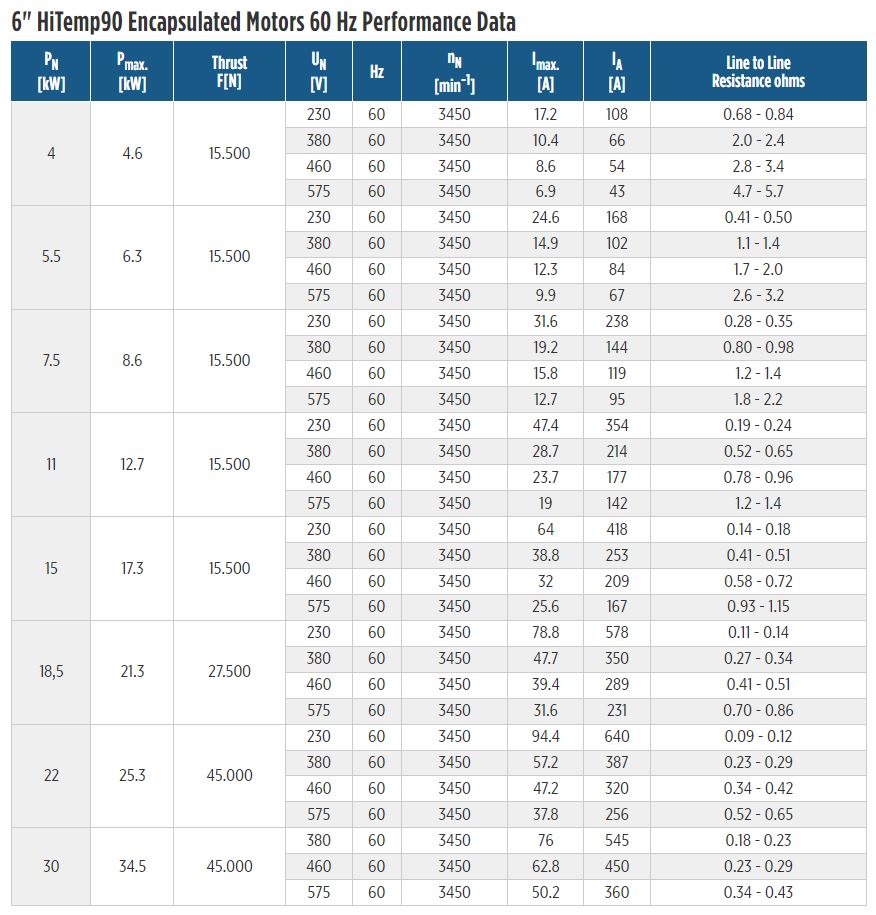

Performance

Downloads


Click here to download catalogue page
