VS 78 – 8″ Submersible Pump E-tech Franklin Electric

Submersible Pumps for 6″ deep wells or larger

  • Size: 8″
  • Brand:  Franklin Electric E-te
  • Max Flow:  100m3/h
  • Max Head:  479m
  • Series:  VS 78
  • Flow: up to 120 m³/h at 50 Hz
  • Head: up to 500m at 50 Hz



Contact us for more info

Submersible Pumps for 8″ deep wells or larger

The E-Tech 8″ VS Series water pumps were designed specifically for municipal and industrial applications where high grade stainless steel is required. These pumps contain stainless steel impellers, a thick solid stainless steel shell to maintain alignment and heavy investment cast suction and discharge brackets. Designed to operate efficiently with Franklin Electric submersible motors, the E-Tech VS Series all stainless steel pump is equipped to handle the most demanding conditions.


  • Stainless steel components for durability and robustness, guaranteeing longevity and trouble-free operation. Many design technical features make this pump range very compact and extremely reliable, to ensure applications in the most complex and severe conditions
  • External stainless steel sleeve to improve stiffness and assure permanent alignment of all the components
  • Motor adapter and discharge head may be removed without disturbing the impeller / diffuser stack
  • Built-in check valve and over size pump shaft
  • Easy maintenance without the need of special tools


  • Flow: up to 120 m³/h at 50 Hz
  • Head: up to 500m (50 bar) at 50 Hz
  • Maximum allowable amount of sand 100 g/m³
  • Water temperature:
  • Minimum: -5 °C
  • Maximum: +60 °C for all versions
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA standard
  • Motors: see section Submersible Motors

Available on request

      • Pump material:
      • 316 Stainless steel (N) version (DIN/EN 1.4401)
      • 904L (R) version (DIN/EN 1.4539)
      • See specified material variant in materials/fluids compatibility table on page 50 in the Product Catalog
      • Double cable guard
      • Discharge head:
      • Rp 4” for I and N versions
      • Rp 6” for R version

Additional information

Pump Size

Series Max Flow

up to 80m3/ at 50Hz

Series Max Head

Up to 462m at 50Hz

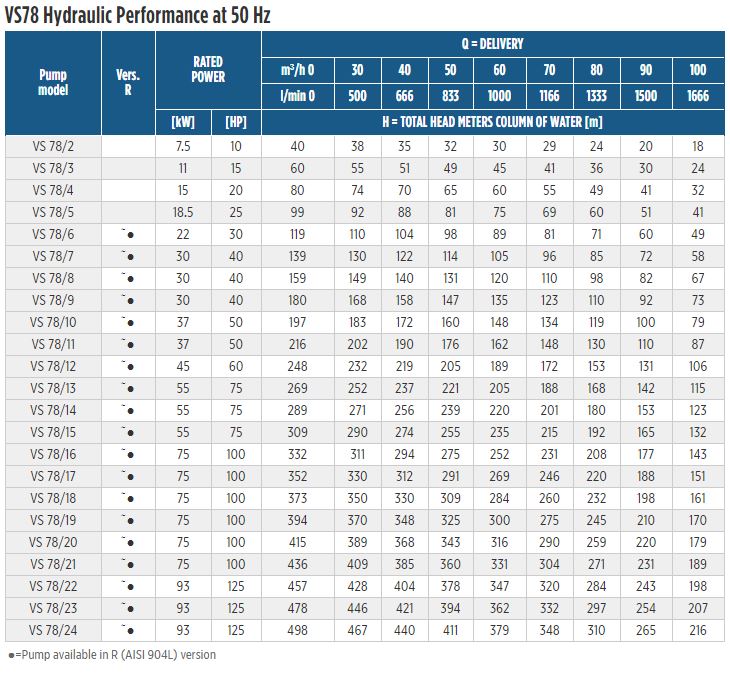

50Hz Performance


Click here to download catalogue page
