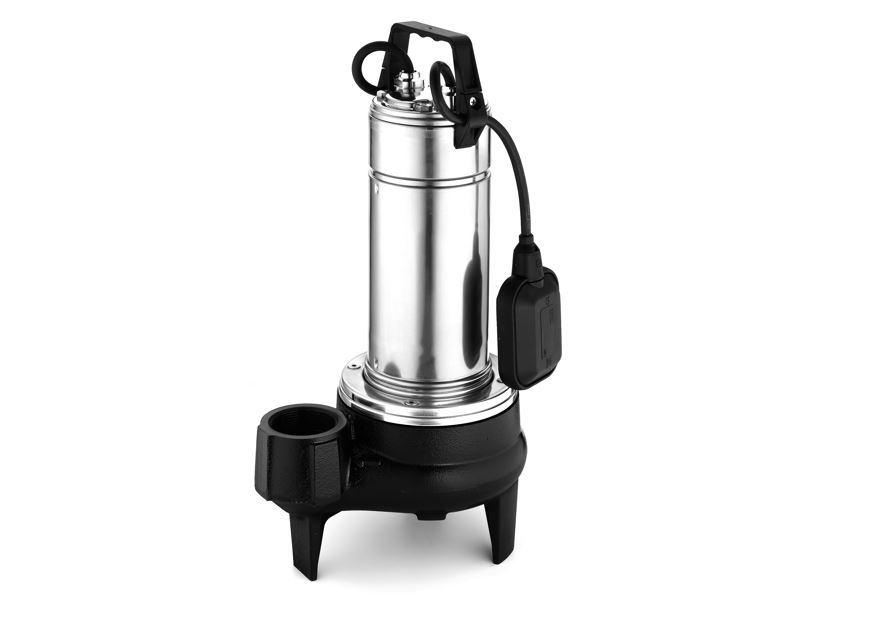

Franklin Electric E-tech EGT Series with vertical threaded delivery port G2″, Three Phase Drainage submersible pumps for dirty water
Construction
- Single-impeller submersible pumps, with free-flow (vortex) impeller
- EGT: with vertical threaded delivery port (G 2”)
- EGF: with horizontal flanged and threaded delivery port (DN 50 – G 2”)
- Double mechanical shaft seal with interposed oil chamber, to protect against dry-running
Applications
- For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials
- For draining rooms or emptying tanks
- Extraction of water from ponds, streams or pits and for rainwater collection
Operating conditions
- Liquid temperature: up to 35 °C
- PH value: 6-11
- Maximum immersion depth: 5 m
- Minimum immersion depth: 275 mm
- Continuous duty (with submerged motor)
Motor specification (EGT and EGF Series Ranges)
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
- EGT/EGF:
- Single-phase 230 V ± 10 %, with float switch and thermal protector
- Incorporated capacitor
- Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166
- EGT…T/EGF…T:
- Three-phase 230 V ± 10 %; Three-phase 400 V ± 10 %
- Cable: H07Rn-F, 4G1 mm², length 10 m, without plug
- Insulation class F
- Protection Ip X8 (for continuous immersion)
- Triple impregnation humidity-proof dry winding
- Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41
Available on request
-
- Other voltages
- Frequency 60 Hz
- Other mechanical seal
- Cable length 20 m
- Motor suitable for operation with frequency converter
- 3-phase pumps with incorporated float switch
